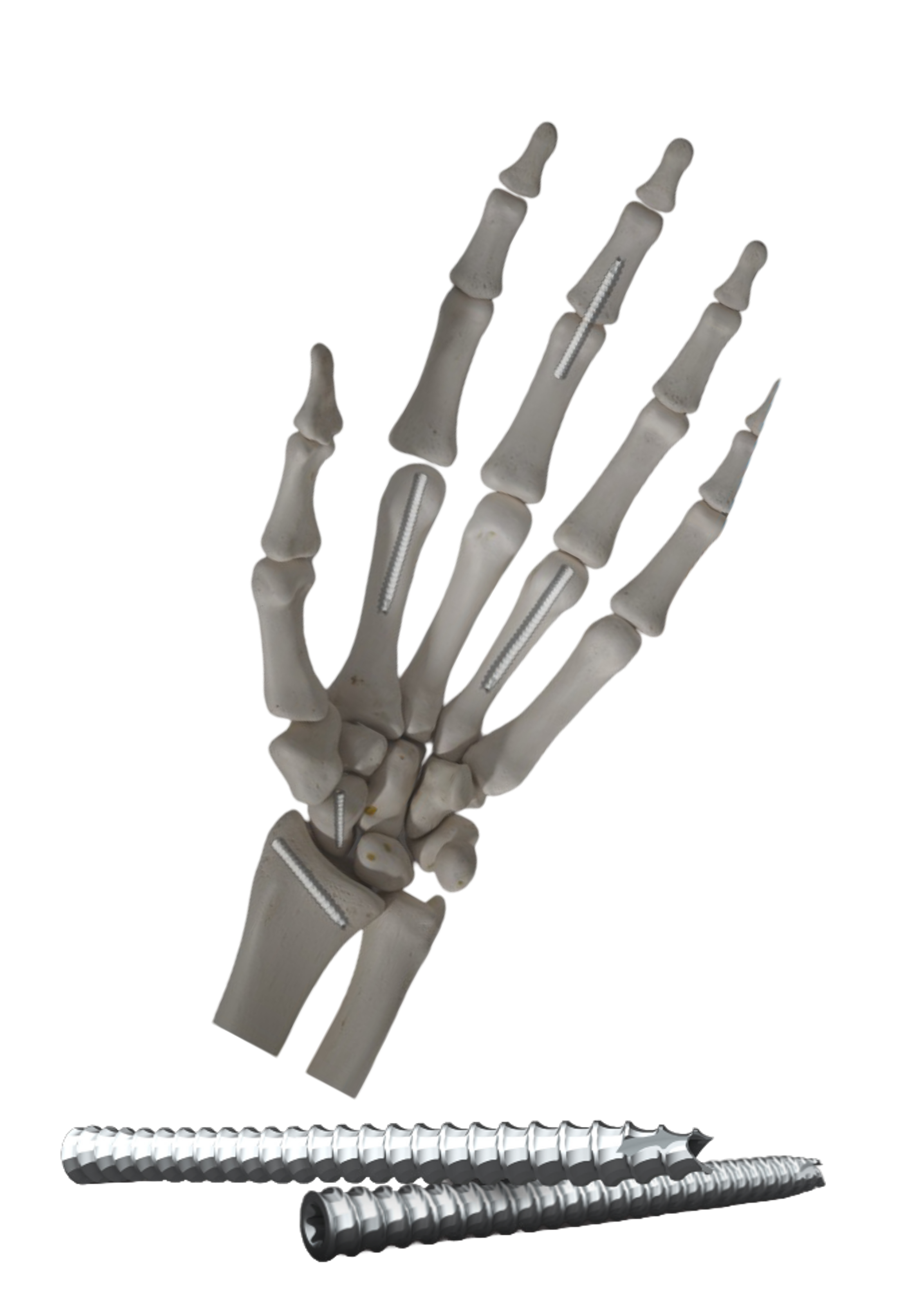

Cannulated Headless Faceted Screws with Single-Use Surgical Instrument Kit
Diamond Orthopedic. The New Fixation Standard in Orthopedics
Diamond Orthopedic bone screws feature an enhanced design where facets are added to screw threads, increasing thread volume, fostering better engagement with neighboring bone, and lowering compressive stress at the bone/screw interface. Compressive stress generated by traditional threads can lead to microfractures, damaged bone, and can create a narrow, high-stress core susceptible to pullout failure. A faceted screw’s ability to generate lower compressive stress at the bone/screw interface brings a new and unique way to address this issue.
- Lower Insertional Torque - The faceted threadform lowers insertional torque required to reduce a fracture by ~50%1
- Increased Bone Contact - Faceted bone screws feature better neighboring bone engagement that leads to increased osteogenesis and bone/device apposition2
- Higher Pullout Strength - Faceted bone screws feature an improved bone/screw interface, increasing fixation and pullout strength, with up to 61% greater pullout strength two weeks after surgery2
Faceted Threadform Technology
The unique geometry of facets reduces friction during the insertion process and uses the naturally occurring viscoelastic properties of bone to achieve more contact at the bone-screw interface. The faceted threadform enables a nearly 50% reduction in insertion torque with less stress transfer and higher pullout strength.1
- Facets create ‘peaks’ and ‘valleys’ on screw threads. The ‘peaks’ serve as the initial area of bone/screw contact during insertion, which reduces friction and results in ~50% less torque required for insertion
- Immediately following insertion, bone relaxes into facet ‘valleys,’ enabling greater bone/screw contact than the typical helical screw.
- Facets bring a “volumetric advantage,” with thread valleys holding up to 20% more bone volume, enabling greater pullout strength and toggle performance.

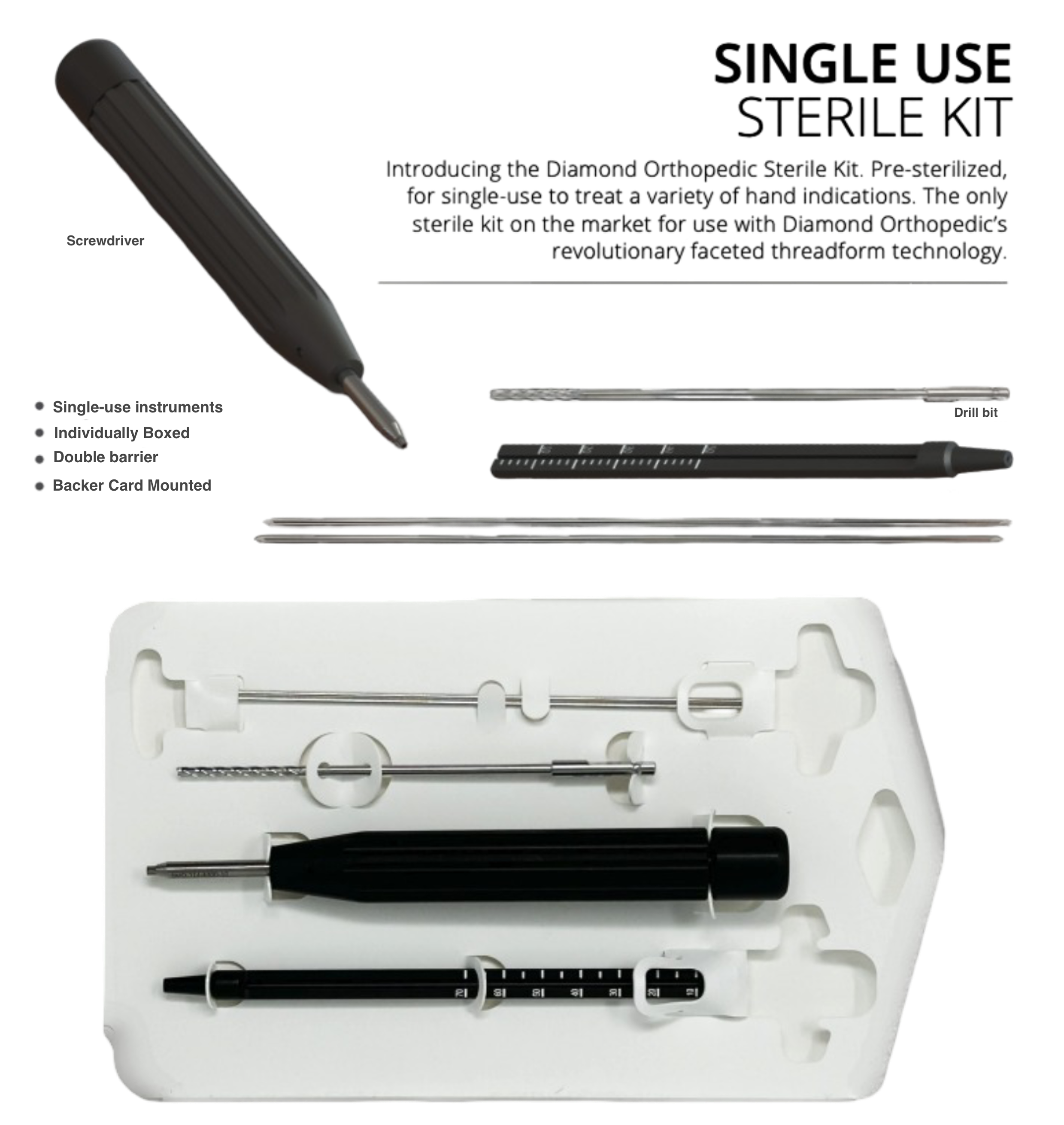

Single Use Sterile Instrument Kit Components
REFERENCES
1. Based on studies conducted at Orthokinetic Testing Technologies; tested in biological and non-biological test substrates. Data on file.
2. Based on in vivo ovine testing conducted at OrthoKinetic Testing Technologies as compared to market leading helical screw with same profile. Additional validation testing has been performed in non-biological substrates. Data on file.
All necessary regulatory documentation, instructions for use, published studies, patient education tools, etc. (as applicable) can be provided upon request by contacting cs@spartanmedical.com or (888) 240-8091. We are available at any time to meet with providers and staff to answer any questions about Spartan Medical’s entire portfolio of advanced medical solutions.
